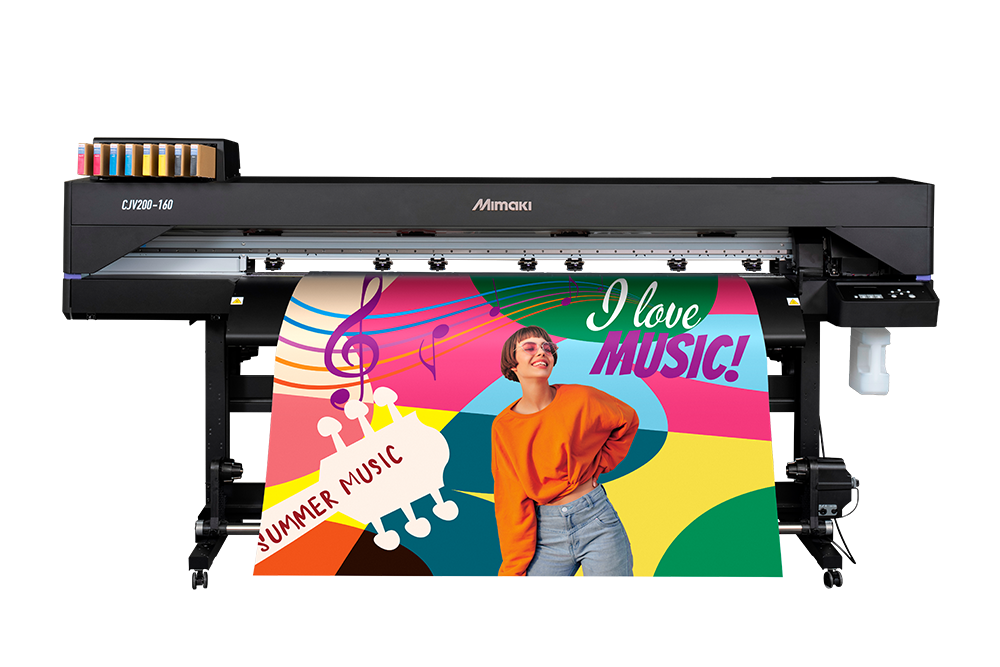

Mimaki "CJV200" Series Roll to Roll printer
Description
T"CJV200 Series" is a print & cut eco-solvent inkjet printer which equipped with a single print head of "330 Engine" in our flag-ship printer, enabling even inexperienced operators to produce printed products beautifully, quickly, and easily.
- Beautiful printing. Mimaki's flag-ship printer's "330 Engine" a single print head is mounted to achieve high image quality.
- Reliable even during busy periods. Highest practical print speed at entry level: 17.0 m²/h
- Simple design that is easy for anyone to use. Easy to work with, easy to check, and easy to maintain.
- Compatible with our new ink "SS22," which reduces odor by approximately 40%*1 and does not contain GBL*2, the use of which has been increasingly regulated around the world in recent years. The industry-leading outdoor weather resistance keeps printed materials vividly colored, while taking operators and the global environment into consideration.*1: Comparison with in-house ink based on our evaluation
*2: GBL: Gamma-Butyrolactone (substance). A type of organic solvent. It is generally added as a material that constitutes ink in conventional solvent printers of our company and other companies.
Specifications
| CJV200-75 | CJV200-130 | CJV200-160 |
|---|
| Print head | On-demand piezo head |
|---|
| Print resolution | 600dpi, 900dpi, 1200dpi |
|---|
| Print gap | By manual 2 levels (1.5/2.0 mm) |
|---|
| Ink | Type/Color | Eco-solvent ink
SS22 (C,M,Y,K,Lc,Lm,Lk,Or)
SS21 (C,M,Y,K,Lc,Lm,Lk,Or)
BS4 (C,M,Y,K) *Only available in specific countries |
|---|
| Capacity *1 | SS22:440ml Ink cartridge / 1L Ink pack
SS21: 440ml Ink cartridge / 2L Ink pack
BS4: 600ml Ink pack *2 / 2L Ink pack |
|---|
| Maximum print width | 800 mm (31.5") | 1,360mm (53.5") | 1,610 mm (63.4") |
|---|
| Media | Maximum width | 810mm (31.9") | 1,370mm (53.9") | 1,620mm (63.8") |
|---|
| Thickness | 1.0 mm or lower |
|---|
| Roll diameter | φ180 mm or less |
|---|
| Roll weight | 25 kg (55.1lb) or less [45 kg (99.2 lb) or less with option *3] |
|---|
| Roll inside diameter | 2 inch / 3 inch |
|---|
| Cutting function | Cutting speed | Max. 300 mm/s |
|---|
| Acceleration | Max. 0.5G |
|---|
| Cutting pressure | 10 - 450 gf |
|---|
| Cutter response times | 10 times/sec |
|---|
| Repeatability | ±0.2 mm (Excluding shrinkage / expansion caused by the film temperature) |
|---|
| Interface | Ethernet 1000 BASE-T (Recommended) / USB2.0 Hi-speed |
|---|
| Certifications | VCCI class A, FCC class A, ETL IEC 62368-1,
CE Marking (EMC, Low voltage, Machinery directive, and RoHS),
CB, Energy Star, RCM, KC |
|---|
| Power supply | Single-phase (AC 100–120V/200–240V)×2 50/60Hz±1Hz |
|---|
| Power consumption | Max. 1,320 W x 2 or less / Min. 4.5 W or less (Sleep mode) |
|---|
| Operational environment | Temperature: 20–30 °C (68–86 °F)
Humidity: 35–65% Rh (Non condensing)
Recommended temperature: 20–25 °C (68–77 °F)
Dust level: General office level |
|---|
| Dimensions (W×D×H) | 1,960 x 748 x 1,370 mm (77.2 x 29.4 x 53.9") | 2,520 x 748 x 1,370 mm (99.2 x 29.4 x 53.9") | 2,770 x 748 x 1,370 mm (109.1 x 29.4 x 53.9") |
|---|
| Weight | 105 kg (231.5 lb) | 130 kg (286.6 lb) | 140 kg (308.6 lb) |
|---|
